Operating principle and product function of parking heater

July 20th, 2021

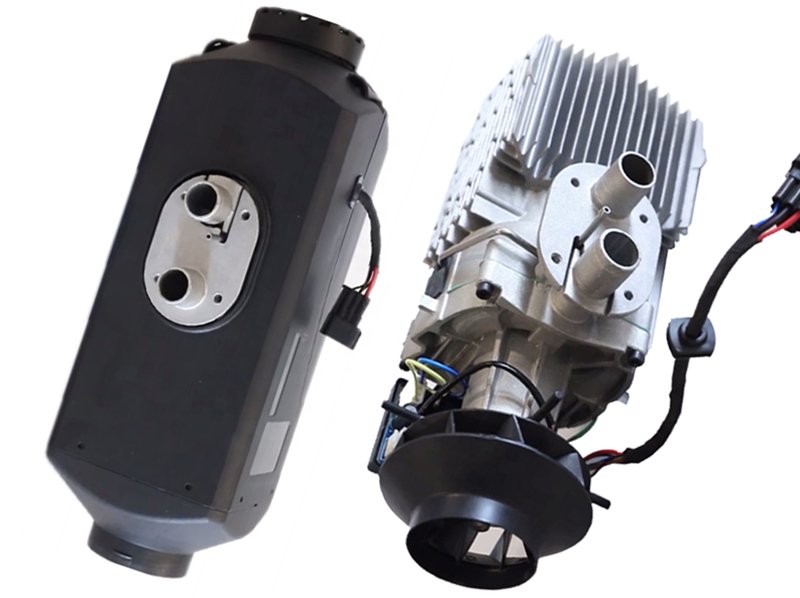

The main motor of the heater drives the plunger fuel pump, combustion fan and atomizer to rotate.

The fuel pump sends the inhaled fuel to the atomizer through the fuel pipeline. The atomizer mixes the atomized fuel with the air inhaled by the combustion fan in the main combustion chamber through the action of centrifugal force, and is ignited by the hot glow plug. After full combustion in the rear combustion chamber, it turns back. Through the inner wall of the water jacket and the radiator above, the heat is transferred to the medium in the water jacket interlayer - coolant.

Operating principle and product function of parking heater

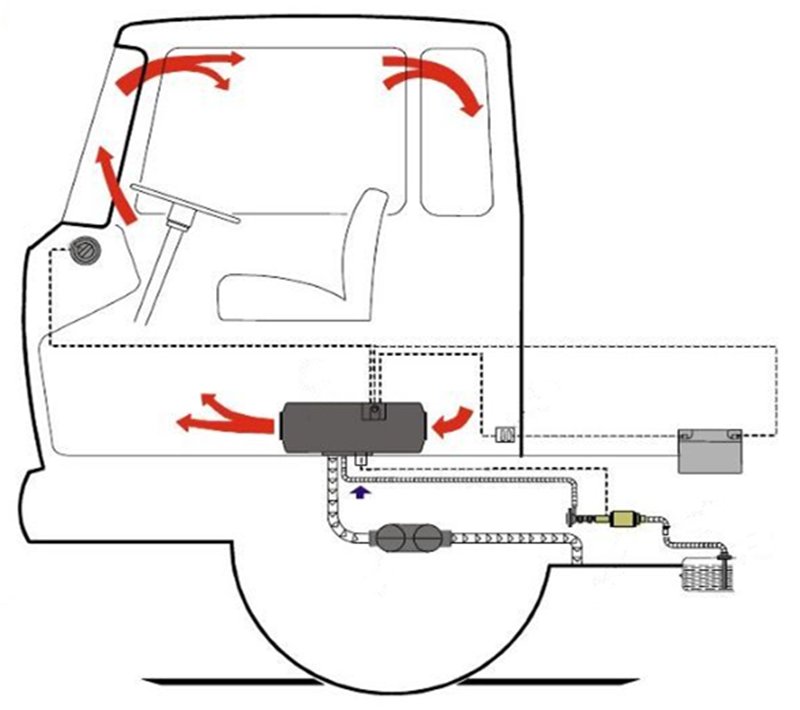

After heating, the medium circulates in the whole pipeline system under the action of circulating water pump (or thermal convection) to achieve the purpose of heating. The exhaust gas from the heater combustion is discharged from the exhaust pipe.

Its working principle is to use the vehicle's battery and fuel tank to supply power and fuel in a small amount, and heat the engine circulating water through the heat generated by burning gasoline to make the engine hot start, and at the same time make the cab warm.

Advantages of parking heater products:

(1) Without starting the engine, the engine and the car can be preheated in advance at the same time, so that you can enjoy the warmth of home when you open the door in the cold winter.

(2) Warming up is more convenient. The advanced remote control and timing system can easily heat your car at any time, which is equivalent to having a car warming store.

(3) Avoid engine wear caused by cold start at low temperature. The research shows that the engine wear caused by a cold start is equivalent to the normal driving of a vehicle for 200 kilometers, and 60% of the engine wear is caused by cold start. Therefore, installing the parking heater can fully protect the engine and extend the service life of the engine by 30%.

(4) Solve the problem of window defrosting, snow scraping and fog wiping.

(5) Environmental protection products, low emissions; Low fuel consumption

(6) The service life is 10 years. One investment will benefit the whole life.

(7) Compact structure, easy to install. Easy maintenance, can be disassembled to a new car when replacing the vehicle.

(8) In summer, it can also cool and clean the interior of the car, cool the interior of the car, and realize multiple functions of one machine.
